Adis16488 MEMS Inertial Measurement Unit IMU for Motion Tracking

Name: Adis16488 MEMS Inertial Measurement Unit IMU for Motion Tracking
Brand: Firepower
Price: 1000 USD

Wholesale Adis16488 MEMS Inertial Measurement Unit IMU for Motion Tracking from china suppliers

Brand Name : Firepower

Model Number : 16488HA

Place of Origin : CHINA

MOQ : 1

Price : 1000$

Payment Terms : T/T

Supply Ability : 1000/month

Delivery Time : 1 week

Packaging Details : carton with sponge

Gyroscope range : ±450º/s

Zero-bias instability : 0.3º/h

Zero bias stability : 3º/h

Random walk : 0.029m/s/√h

Communication Interface : 1-way SPI

Accelerometer range : ±20 g

Acc Zero bias stability : 0.07 mg

Contact Now

Product Description

16488HA inertial measurement unit is a complete inertial system with a built-in three-axis gyroscope and a three-axis accelerometer, which is used to measure the three-axis angular rate, acceleration and other parameters of the carrier, and output the data after error compensation (including temperature compensation, installation misalignment angle compensation, nonlinear compensation, etc.) through SPI according to the communication protocol.

Technical Parameters

Parameter		Test conditions	Minimum value	Typical value	Maximum value	Unit
Gyroscope	Dynamic measuring range			±450		º/s
	Zero-bias instability	Allan variance, better than		0.3		º/h
	Zero bias stability	10s smooth, RMS, better than		3		º/h
	Zero bias in full temperature range	-40 ℃ ~ 85 ℃, 10 s smooth, rms		20		º/h
	Random walk	1σ		0.15		º/√h
	Zero-bias repeatability	1σ		5		º/h
	Scale factor repeatability	1σ		100		ppm
	Scale factor nonlinearity	1σ		100		ppm
	Bandwidth (-3dB)			250		Hz
	Cross coupling			0.1		%
	Resolution			2		º/h
	Acceleration sensitivity			2		°/h/g
Accelerometer	Dynamic measuring range			±20		g
	Zero bias stability	Allan variance		0.07		mg

	Zero bias in full temperature range	-40 ℃ ~ 85 ℃, 10 s smooth, rms		3		mg
	Zero bias stability	10s smooth, RMS, better than		0.25		mg
	Random walk	1σ		0.029		m/s/√h
	Zero-bias repeatability	1σ		0.5		mg
	Scale factor repeatability	1σ		500		ppm
	Scale factor nonlinearity	FS=20g		500		ppm
	Bandwidth (-3dB)			250		Hz
	Cross coupling			0.1		%
Communication Interface	1-way SPI	Enter the clock frequency		8	15	MHz
Electrical characteristics	Voltage	Direct current		3.3		V
	Power consumption			1.5	1.5	W
	Ripple	P-P		48±2	100	mV
Use environment	Operating temperature		-45		85	℃
Use environment	Storage temperature		-55		85	℃

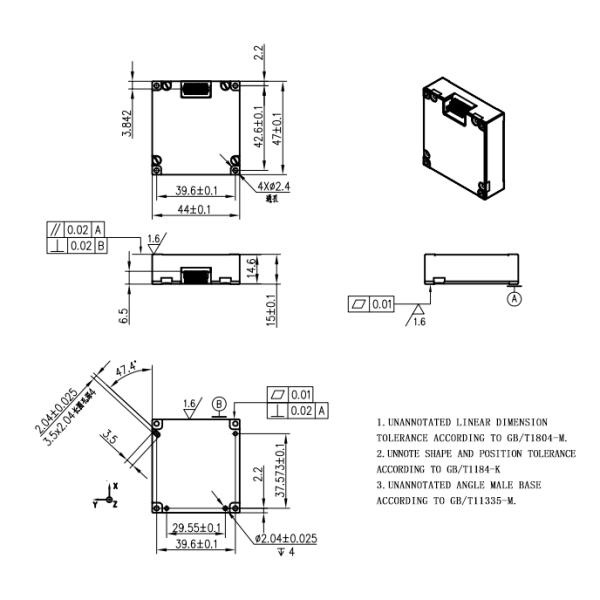

Outline Drawing
